BILL40 Ram Kit

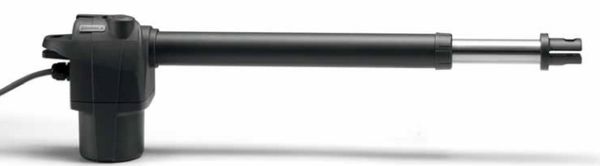

BENINCA BILL 40 is an operator for swing gates for the leaf length of 4 m. Max depth of hinge mounting - 15 cm.

The smooth lines of the BILL series models make them ideal for classic, wrought iron swing gates. They are easy to install and a very valid option if you only have limited space available. They are also suitable for use in dusty or chemically aggressive environments as the internal mechanics are well protected. An operator cover is available to offer additional protection from inclement weather.

The kit contains:

  • 2 x BENINCA BILL 40 operator
  • 1 x BENINCA HEADY control unit with built-in receiver
  • 1 x pair of BENINCA PUPILLA safety photocells
  • 1 x BENINCA TOGO2WV transmitter (2 channels)
  • Mounting hardware
  • Customized keys (in case of power cut)
  • Starting capacitors
  • Operating instruction
  • Warranty
  • Receipt or invoice


  • Geared motor for swing gate
  • 230 Vac irreversible electromechanical
  • Neat design and size, particularly suited to forged iron gates
  • Worm protected by a scraper ring and stainless steel stem, suitable for use in dusty and sandy environments or where there are aggressive atmospheric agents
  • Available in RH or LH version with 300 mm stroke (BILL30M series) or 500 mm stroke (BILL50M series)
  • Quick and easy to install, thanks to reduced size and installation requirements
