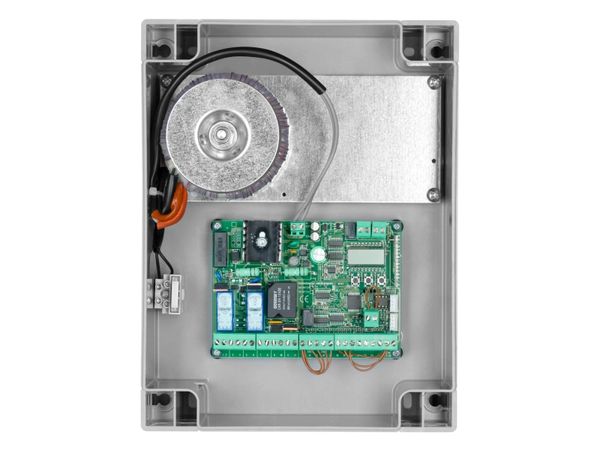

BENINCA BRAINY24 Control Panel (Full Feature)


• 24 Vdc control panel for 1 or 2 motors ideal for swinging or sliding gates
• Easy to install thanks to the built-in display
• Anticrushing safety function with amperometric sensor
• A number of operating logics
• Self-configuration of operating parameters
• Separate slowing-down function during opening and closure for each motor
• Removable terminal boards
• It comes with built-in 433.92 MHz 64-code radio receiver (programmable code/variable code)
• Output for 12 Vac/dc electric lock control
• Inputs to connect the encoder or opening and closing limit switch for each motor
• Inputs for single-step, pedestrian and stop buttons
• Input for 8K2 safety sensitive edge
• Presetting for serial controls auxiliary card
• Possibility of viewing the actual number of manoeuvres
• Programming access password
• It can be operated with the KSUN solar kit
